Quattro® Link Knotless Anchors

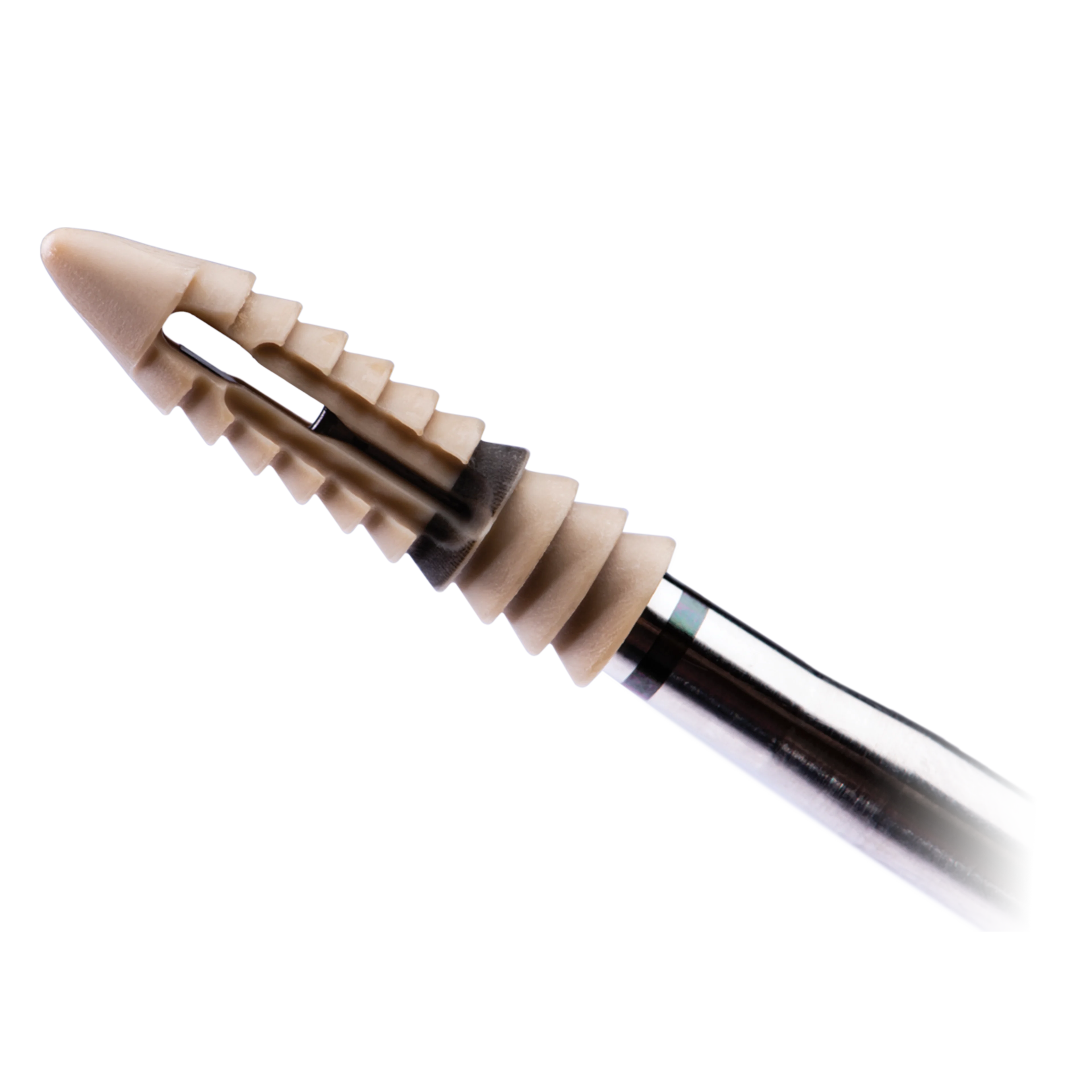

Quattro | Main Product Image

Quattro® Link Knotless Anchors

A unique design allows for controlled tensioning in rotator cuff repair, with the ability to accept up to eight suture limbs, to accommodate all types of tears. The vented, PEEK anchor body provides a strong, stable and reliable platform for lateral row fixation in rotator cuff repair with 519N pull-out strength.1

An anchor that brings control, strength and efficiency to soft tissue repair.

Surgeon-Controlled Tensioning After Anchor Insertion
  • Unique eyelet/cleat design allows tension to be set, held and reversed (if needed) by the surgeon after anchor insertion, and maintained throughout final deployment

  • The Quattro Link Knotless Anchor is designed to address over-tensioning in rotator cuff repair (no need to visualize prior to anchor insertion)

Anchor Accepts up to Eight Suture Limbs or Six Tape Limbs
  • Quattro Link Knotless Anchors easily accept up to eight limbs of #2 MaxBraid™ Suture or six limbs of BroadBand™ Tape, offering versatility based on the surgeon's preferred technique

  • The ability to load multiple sutures allows surgeons to use one less anchor in some cases, resulting in less cost and time

Multiple Suture Fixation Points Between Anchor and Bone
  • Internal cleat mechanism locks suture inside of the anchor during final deployment, in addition to interference fit with bone

  • With multiple fixation points, suture fixation is less likely to be dependent on bone quality.2

Self-Punching Option
  • The 4.5mm Quattro Link Knotless PEEK Anchor combines a self-punching, titanium tip to facilitate fast and efficient deployment
